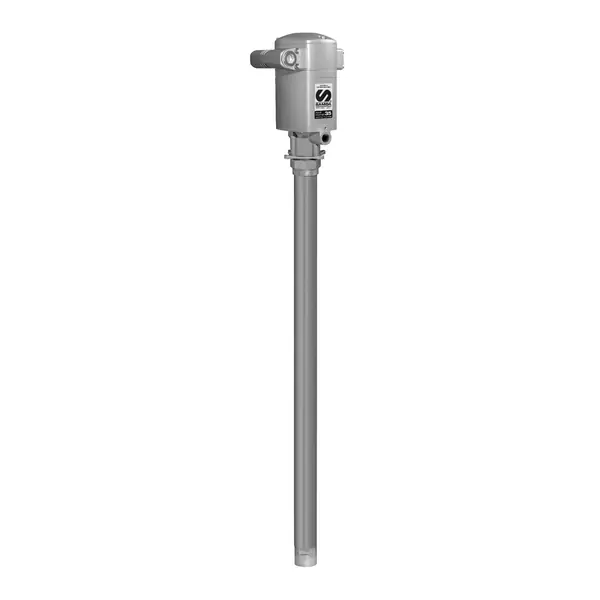

SAMOA Air Operated Oil Pump – 5:1 Ratio, 30 L/min, Made in Spain 535510

Model:: 535510
Category:: Hydraulic Equipment › Grease & Oil Equipment

✓Delivery across Saudi Arabia
✓Bulk and project orders
✓One quotation for your full list
✓Tax invoice (VAT) with every order

Request a quote for this item

Prices are quoted per order — they depend on quantity, delivery city and current stock.

Technical specifications

Model	535510
Brand	SAMOA (PM35 Series)
Compatible Fluids	Oil, Transmission Fluid
Pump Mounting	205 L (55 gal) Drum Bung Mounted
Pressure Ratio	5-1
Air Pressure Operating Range	2 - 12 bar (29 - 174 psi)
Air Consumption	350 NL/min (12.4 scfm)
Maximum Outlet Pressure	60 bar (870 psi)
Air Motor Effective Diameter	80 mm (3.15")
Air Motor Stroke	80 mm (3.2")
Delivery Per Cycle	12 L (3.2 gal)
Cycles Per Minute (Approx.)	80 Cycles
Delivery	12 L/min (3.2 gal/min)
Maximum Free Flow Delivery	30 L/min (8 gal/min)
Air Inlet	3/8" BSP (F)
Fluid Inlet	1 1/2" BSP (F)
Fluid Inlet Type	Ball Check
Fluid Outlet	1/2" BSP (F)
Wetted Materials	Hard Chromed Steel, Steel, Polyurethane, NBR, Aluminium
Pump Tube Material	Carbon Steel
Sound Level	80 dB
Pump Tube Height	925 mm (36.4")
Total Height	1194 mm (47")
Weight	Approx. 8 Kg (17.6 lb)
Country of Origin	Spain

About this product

SAMOA Air Operated Oil Pump – 5:1 Ratio, 30 L/min, Made in Spain 535510 is available to order through BRO Global for contractors, factories, workshops, facilities teams and project sites across Saudi Arabia.

It is a Samoa product, made in Spain, supplied with its standard accessories and documentation as issued by the manufacturer.

Send us the quantity, delivery city and required date — our procurement team replies with price, availability and lead time, and can combine it with the rest of your order on one quotation.
