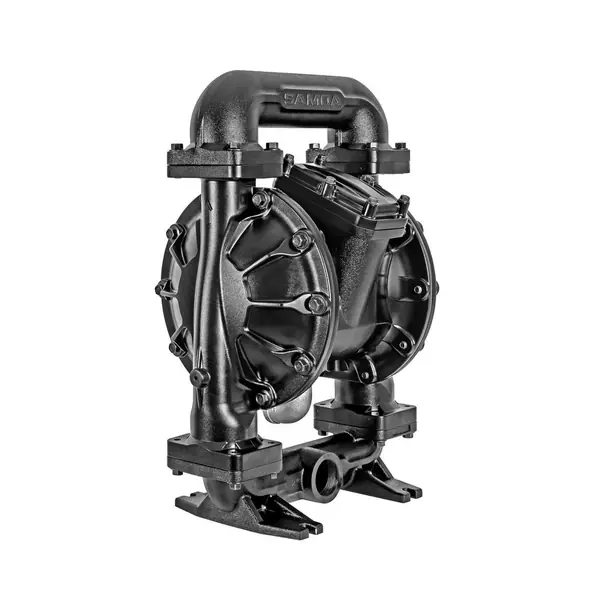

SAMOA Double Diaphragm Pump, 2 Inch, 650 L/min UP20A-BAC-MMA

Model:: UP20A-BAC-MMA
Category:: Water Pumps › Electric Water Pumps

✓Delivery across Saudi Arabia
✓Bulk and project orders
✓One quotation for your full list
✓Tax invoice (VAT) with every order

Request a quote for this item

Prices are quoted per order — they depend on quantity, delivery city and current stock.

Technical specifications

Model	UP20A-BAC-MMA
Brand	SAMOA
Series	Pivot Series Diaphragm Pumps
Pump Size	2"
Maximum Free Flow Delivery	650 L/min (172 gal/min)
Air Pressure Operating Range	1.5 - 8 bar (20 - 120 psi)
Solids in Suspension Maximum Size	6.4 mm (0.25")
Maximum Dry Suction Head	5 m (16 ft)
Maximum Wet Suction Head	8 m (26 ft)
Delivery Per Cycle	4.5 L (1.2 gal)
Fluid Inlet / Outlet	2" BSP (F) - Central Threaded
Air Inlet	3/4" NPT (F)
Air Exhaust Port	1 1/2" NPT (F)
Sound Level	85 dB
Certification	ATEX (Ex II2 GD IIB/IIC 95 ˚C)
Central Body & Air Chambers	Aluminium
Fluid Chambers & Manifolds	Aluminium
Hardware Bolts	Carbon Steel
Diaphragms, Valve Seats & Balls	Santoprene
Weight	Approx. 46 Kg (101 lb)
Country of Origin	Spain

About this product

SAMOA Double Diaphragm Pump, 2 Inch, 650 L/min UP20A-BAC-MMA is available to order through BRO Global for contractors, factories, workshops, facilities teams and project sites across Saudi Arabia.

It is a Samoa product, made in Spain, supplied with its standard accessories and documentation as issued by the manufacturer.

Send us the quantity, delivery city and required date — our procurement team replies with price, availability and lead time, and can combine it with the rest of your order on one quotation.
