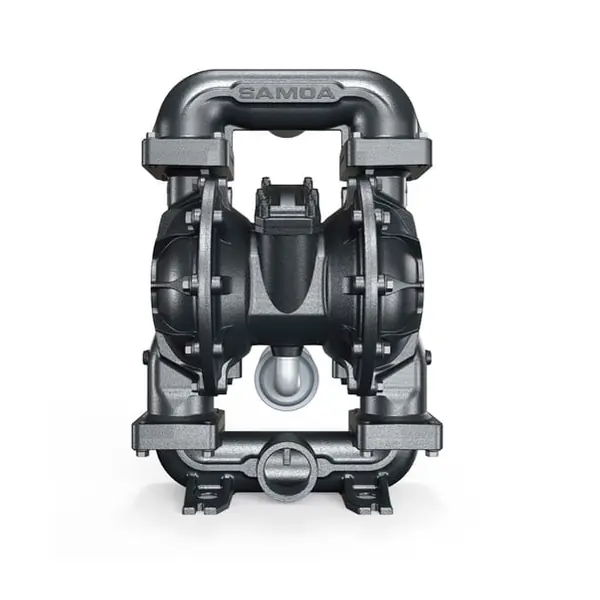

SAMOA Double Diaphragm Pump, 3 Inch, 1000 L/min UP30A-BAC-MMA

Model:: UP30A-BAC-MMA
Category:: Water Pumps › Electric Water Pumps

✓Delivery across Saudi Arabia
✓Bulk and project orders
✓One quotation for your full list
✓Tax invoice (VAT) with every order

Request a quote for this item

Prices are quoted per order — they depend on quantity, delivery city and current stock.

Technical specifications

Model	UP30A-BAC-MMA
Brand	SAMOA
Series	Pivot Series Diaphragm Pumps
Pump Size	3"
Maximum Free Flow Delivery	1000 L/min (264 gal/min)
Air Pressure Operating Range	1.5 - 8 bar (20 - 120 psi)
Solids in Suspension Maximum Size	12.7 mm (0.5")
Maximum Dry Suction Head	6 m (20 ft)
Maximum Wet Suction Head	8 m (26 ft)
Delivery Per Cycle	10 L (2.6 gal)
Fluid Inlet / Outlet	3" BSP (F) - Central Threaded
Air Inlet	3/4" NPT (F)
Air Exhaust Port	1 1/2" NPT (F)
Sound Level	85 dB
Certification	ATEX (Ex II2 GD IIB/IIC 95 ˚C)
Central Body & Air Chambers	Aluminium
Fluid Chambers & Manifolds	Aluminium
Hardware Bolts & Inserts	Carbon Steel
Diaphragms, Valve Seats & Balls	Santoprene
Weight	Approx. 64 Kg (141 lb)
Country of Origin	Spain

About this product

SAMOA Double Diaphragm Pump, 3 Inch, 1000 L/min UP30A-BAC-MMA is available to order through BRO Global for contractors, factories, workshops, facilities teams and project sites across Saudi Arabia.

It is a Samoa product, made in Spain, supplied with its standard accessories and documentation as issued by the manufacturer.

Send us the quantity, delivery city and required date — our procurement team replies with price, availability and lead time, and can combine it with the rest of your order on one quotation.
